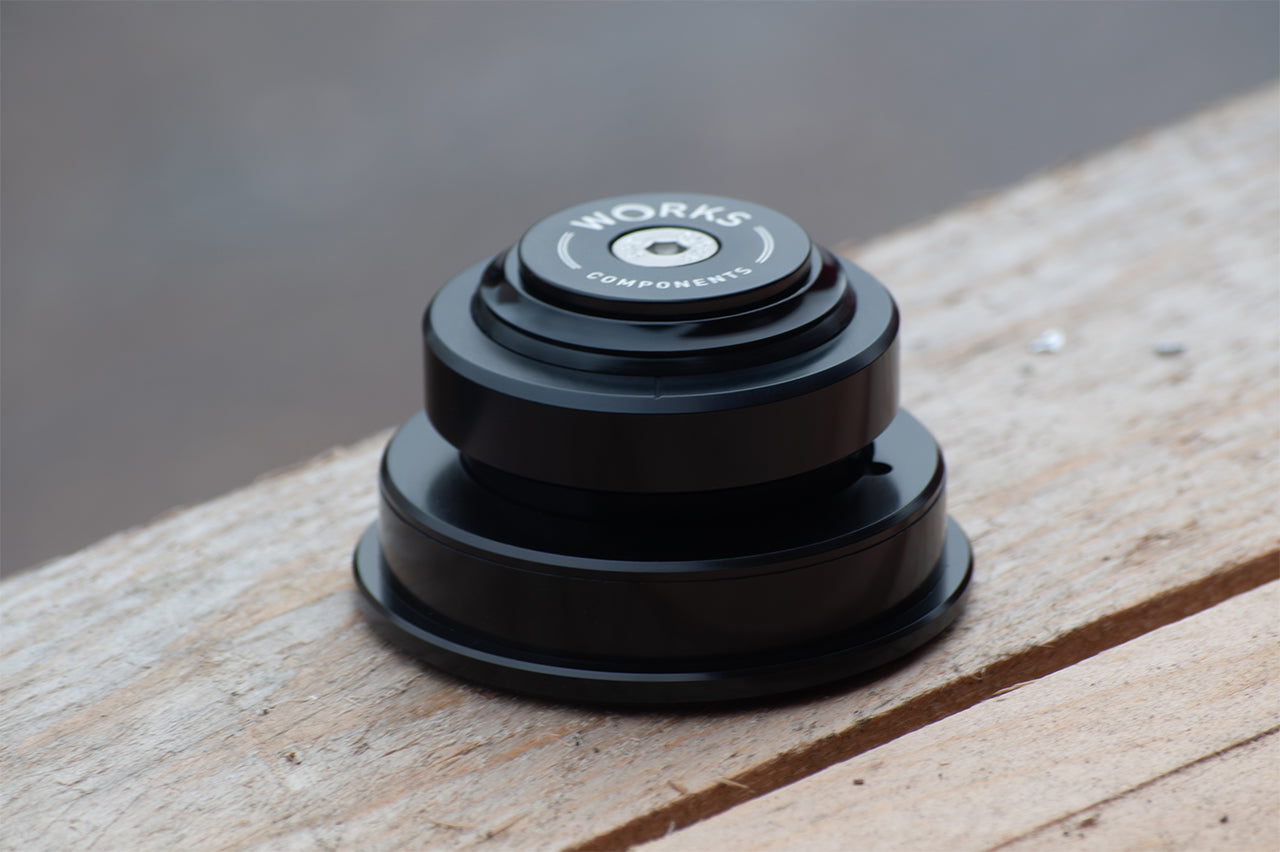

2.0 Degree EC44-ZS62 Angle Headset - To Suit Tapered Steerer Tube

Fits headtube internal diameter: Upper - 44mm: EC44
Fits headtube internal diameter: Lower - 62mm: ZS62

Upper cup insertion depth: 9mm
Lower cup insertion depth: 11.5mm

Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm
Lower cup Stack height: 3mm

Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing

Upper cup is external (EC) - will fit frames using ZS44 (ZS) upper headcup as standard.

If you are running a 1 1/8" fork you will need to purchase the reducer crown above - this headset comes as standard with a crown race to suit tapered forks.

Works Components 2.0° angle-adjust headset with EC44 upper and ZS62 lower cups for tapered steerer tubes. CNC-machined in the UK from 6082-T6 aluminium with sealed bearing. Allows + or - geometry adjustment. Fits frames with 44mm upper and 62mm lower internal head tubes. Tapered steerer tube compatible (1 1/8" to 1 1/2") or with 1 1/8” fork with a reducer crown race. Designed to fit Evil Co. frames using ZS44-ZS62 headtubes.

2x Headcups

2x Bearings

1x Crown Race

1x Upper Bearing Cover

1x Topcap including Star-Nut

1x Compression Ring and Spacer
