20% off

1.0 Degree EC34-EC34 Angle Headset - To Suit 1 1/8" Steerer Tube
€59,95 €74,95

6 reviews
SKU: WCH3434-1D-2
Specifications

Fits Headtube Internal Diameter: Upper - 33.95mm: EC34
Fits Headtube Internal Diameter: Lower - 33.95mm: EC34

Upper Cup Insertion Depth: 12mm
Lower Cup Insertion Depth: 12mm

Upper Cup Stack Height: 11mm - Total upper stack height including bearing cover: 16mm
Lower Cup Stack Height: 11mm

Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Lower Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Description

Works Components 1.0° angle-adjust headset with EC34 upper and EC34 lower cups for 1 1/8" steerer tubes. CNC-machined in the UK from 7075-T6 aluminium with sealed bearings. Allows + or - geometry adjustment. Fits frames with 34mm upper and 34mm lower internal head tubes. 1 1/8" steerer tube compatible. Ideal for trail, enduro, road and downhill bikes.

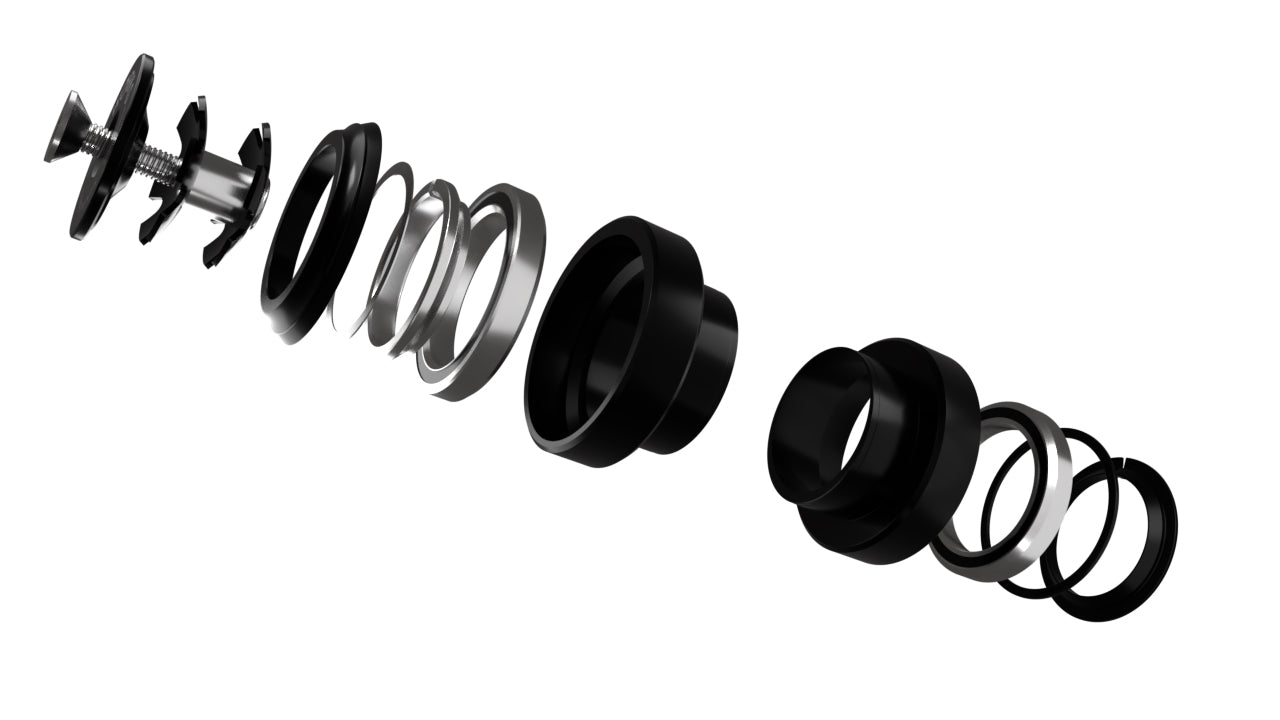

What's in the Box

2x Headcups

2x Bearings

1x Crown Race

1x Upper Bearing Cover

1x Topcap including Star-Nut

1x Compression Ring and Spacer
View details

EC34-EC34

Allows for +/- 1.0 degree change.

Fits headtube internal diameter (ID):
Upper: 34mm
Lower: 34mm

1 1/8" steerer tube compatible.

Is the EC34-EC34 the right Headset for you?

Click below to see our Angle Headset buying guide!

Headset GUIDE

Manufactured in the UK

CNC Machined, Designed and Anodised in the UK.

Performance trusted by World Cup riders.

Allows +/- geometry adjustment for improved handling and control

Ideal for riders tuning head angle on 1 1/8" straight head tubes. Includes upper and lower cups.

Add a Custom Topcap

If bought with any of our angle or reach adjust headsets you can get a custom topcap discounted by 50% at checkout.

A headset top-cap in shiny anodised black with multiple different written designs.
A headset top-cap in shiny anodised blue with multiple different written designs
A headset top-cap in shiny anodised red with multiple different written designs
A headset top-cap in shiny anodised turquoise with multiple different written designs
A headset top-cap in shiny anodised purple with multiple different written designs
A headset top-cap in shiny anodised gold with multiple different written designs
A headset top-cap in shiny anodised silver with multiple different written designs
A headset top-cap in shiny anodised orange with multiple different written designs
A headset top-cap in shiny anodised bronze with multiple different written designs

Custom Topcap

€12,95

17 reviews
Color: Black
Description

Customisable Top-Cap, laser etched to order.

Add your own text to 9 different designs and multiple colour options.

Design 1,2 and 3 use the "Poppins" font, Design 4 uses the "Slaytanic" font. Design 5 uses "AmazDoo", Design 6 uses the "Poppins" font. Designs 7 and 8 use "Bungee" and Design 9 uses "AmazDoo".

Made from 6082 Aluminium, Anodised in the UK - complete with stainless steel bolt and star-nut.

Available in: Black, Blue, Red, Purple, Orange, Gold, Silver and Turquoise and Bronze.
