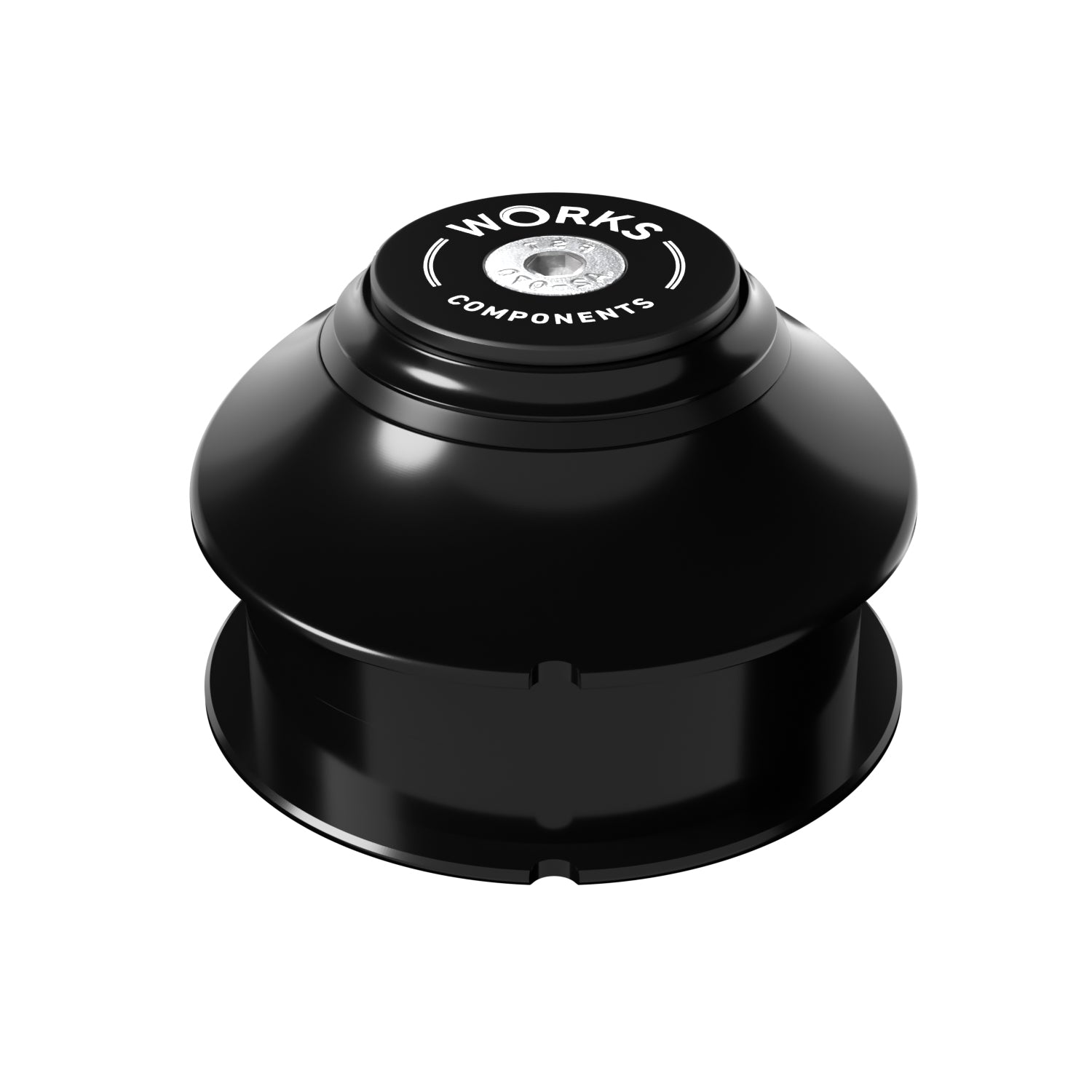

Reach Adjust EC56-EC56 - To Suit 1 1/8" Steerer - 10mm

Color: Black
£84.99

2 reviews
×
Reach Adjust EC56-EC56 - To Suit 1 1/8

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

Reach Adjust EC56-EC56 - To Suit 1 1/8" Steerer - 10mm

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

SKU: WCRHE56E56-118-BLACK
Description

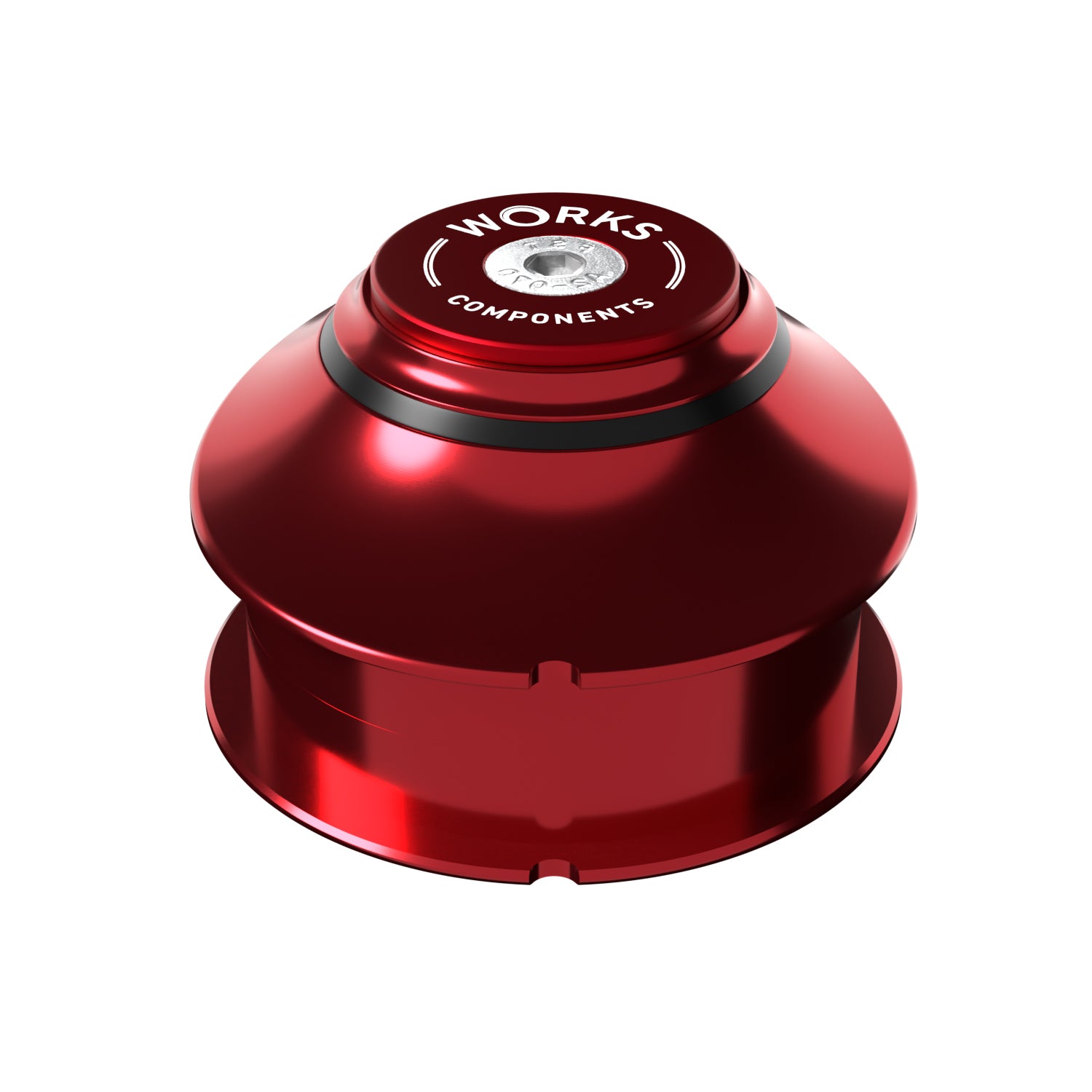

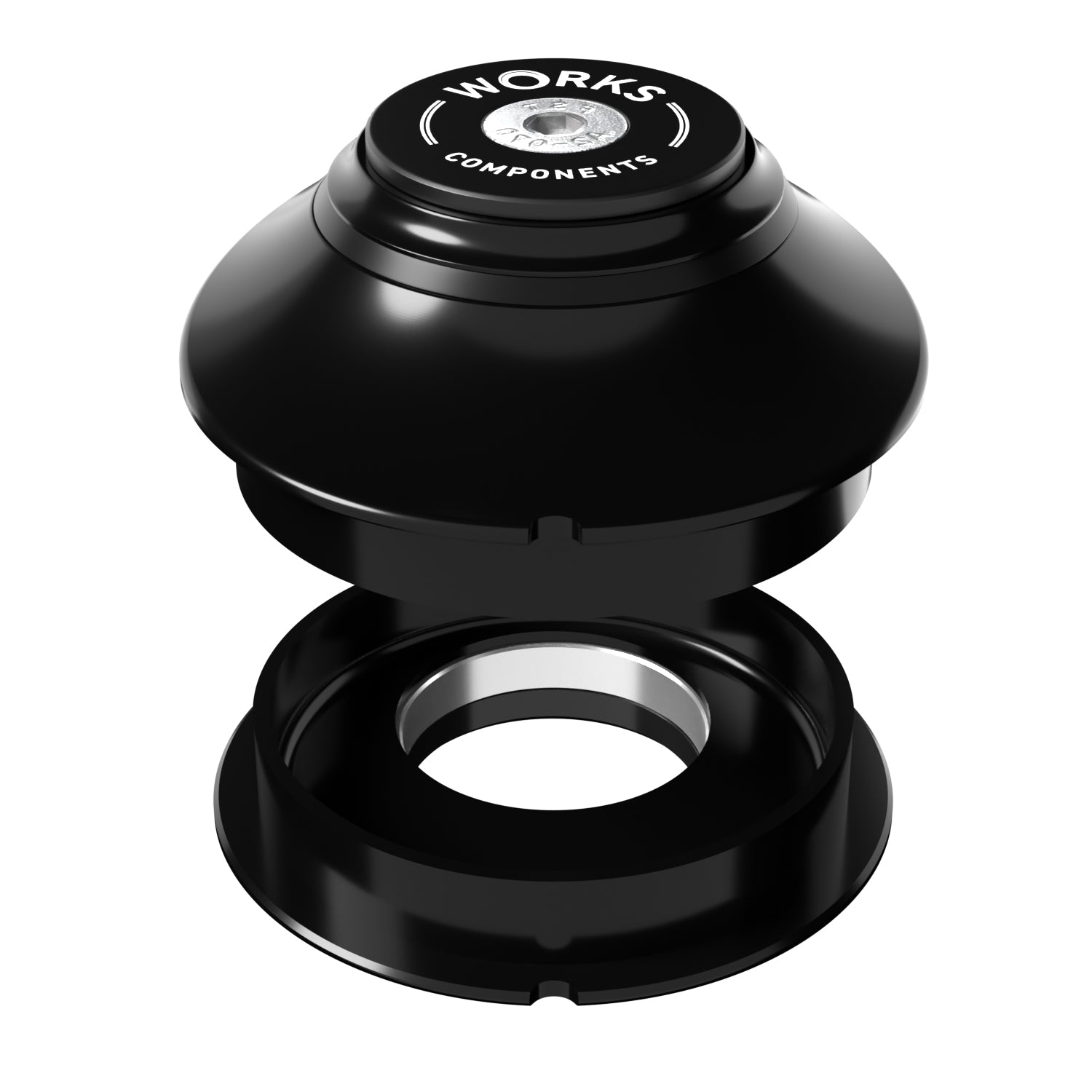

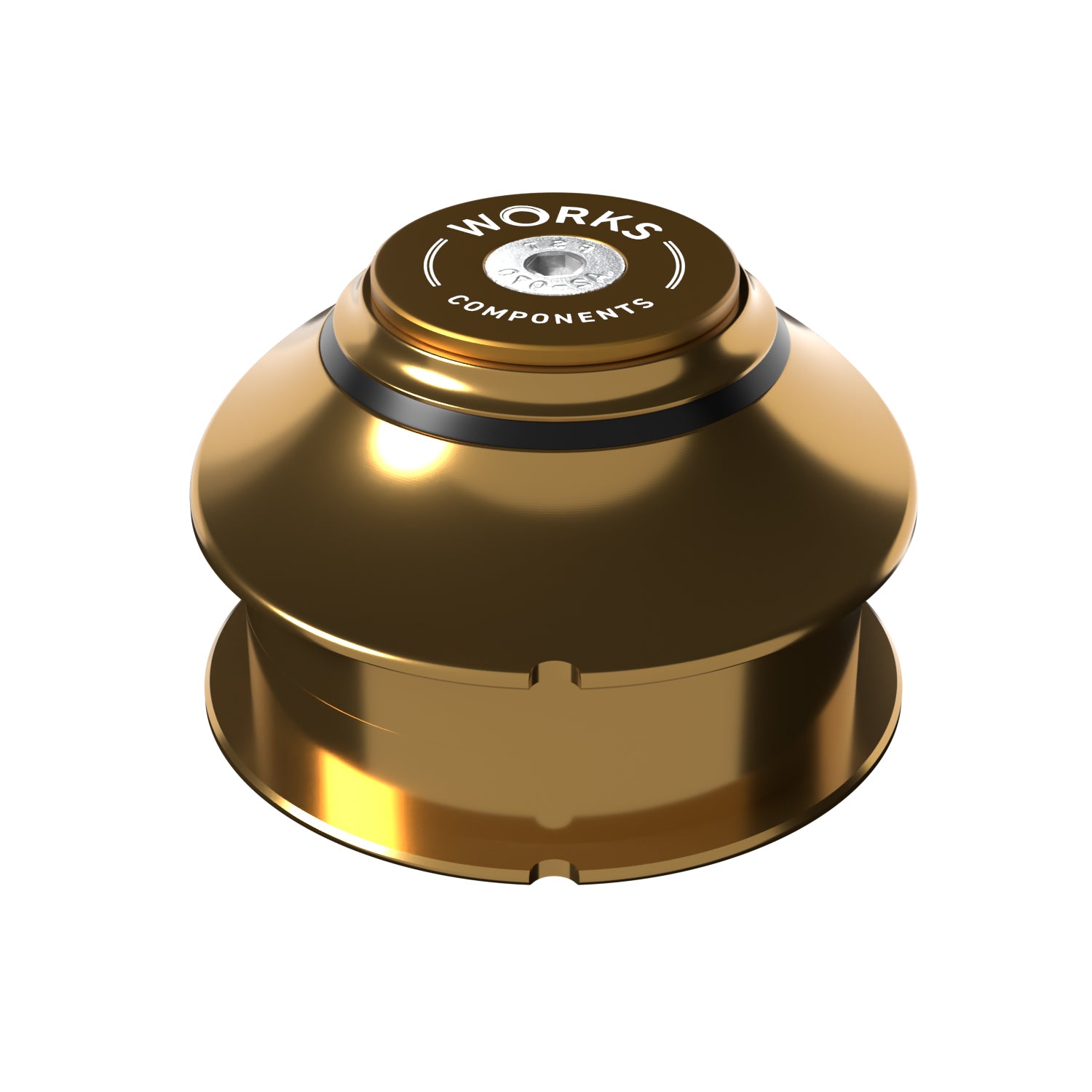

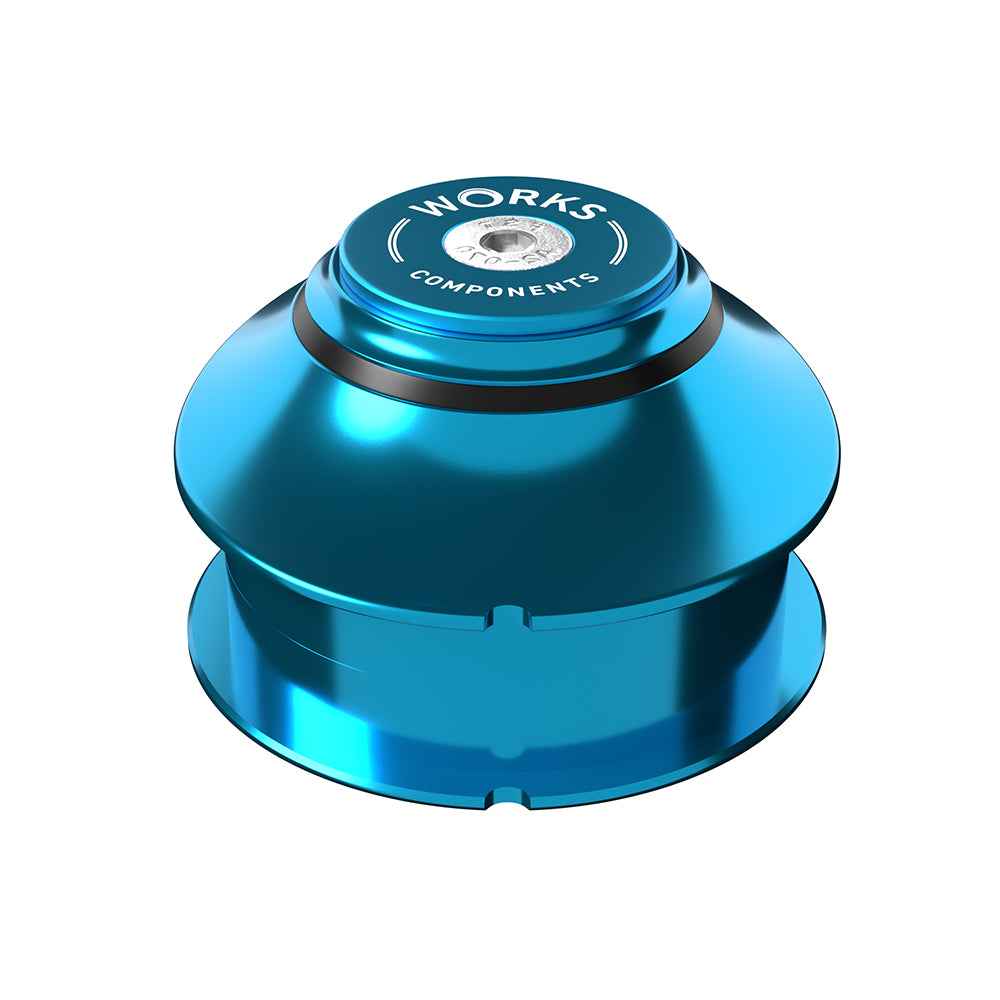

This Reach Adjust headset will allow you to alter your top-tube length by +/- 10mm.

Fits Headtube Internal Diameter: Upper - 56mm: EC56
Fits Headtube Internal Diameter: Lower - 56mm: EC56

Upper Cup Insertion Depth: 11.5mm
Lower Cup Insertion Depth: 11.5mm

Upper Cup Stack Height: 11mm - Total upper stack height including bearing cover: 15mm
Lower Cup Stack Height: 11mm

Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Lower Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing

To suit standard 1 1/8" forks.

Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment.

We use the 'SHIS' standard to label our headsets - For SHIS info please refer to the Park Tools information page - Standardized Headset Identification System | Park Tool
What's in the Box

2x Headcups

2x Bearings

1x Crown Race

1x Upper Bearing Cover

1x Topcap including Star-Nut

1x Compression Ring and Spacer
View details

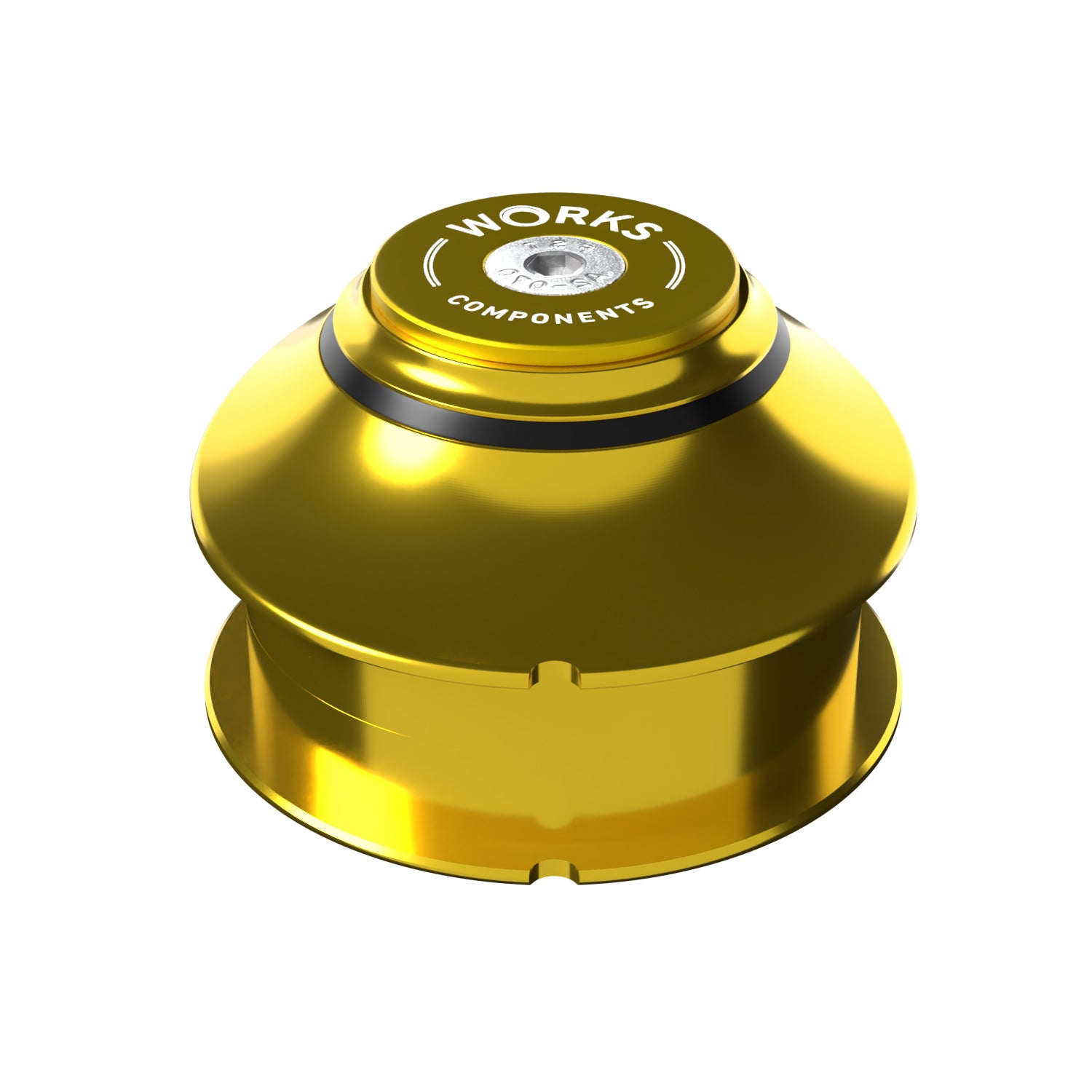

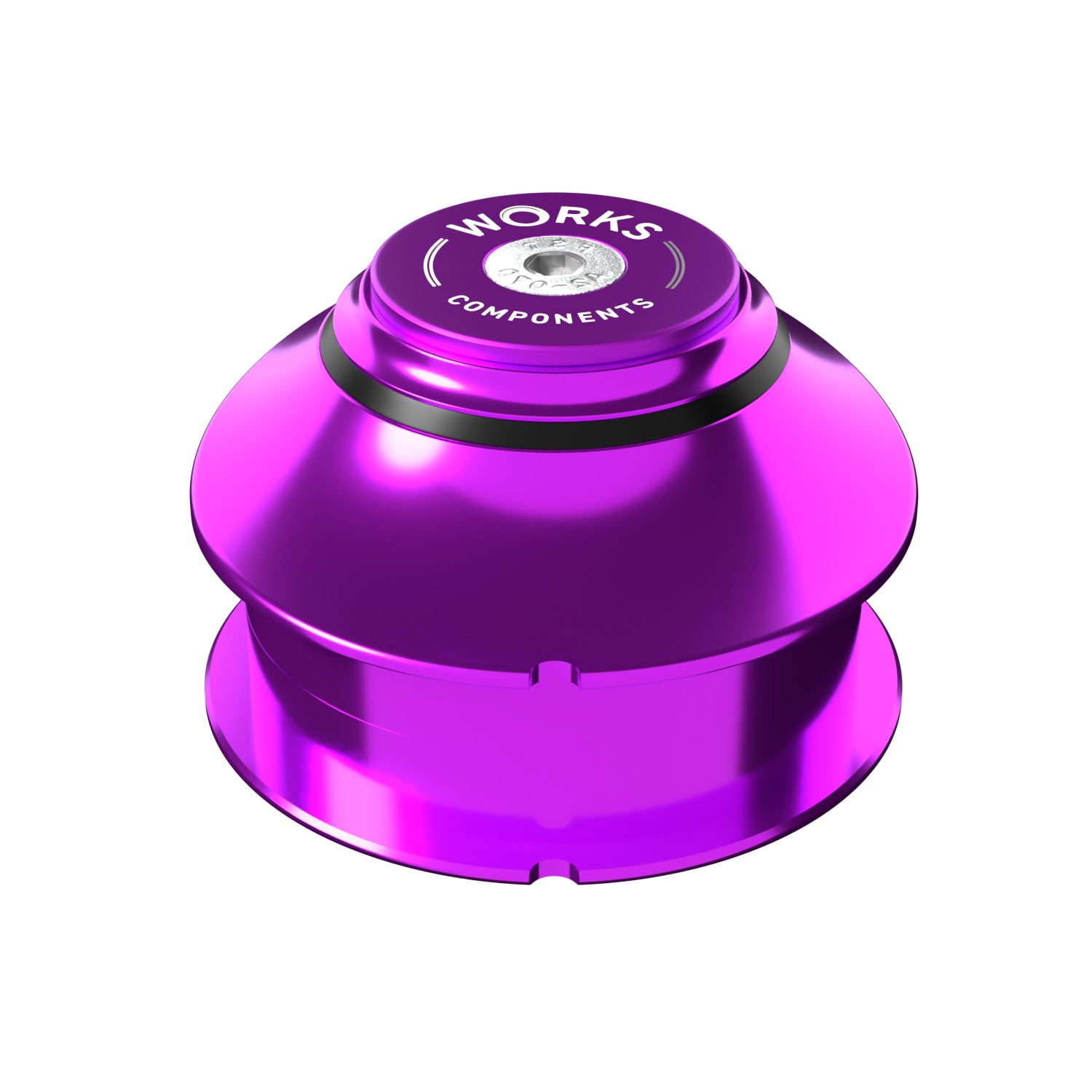

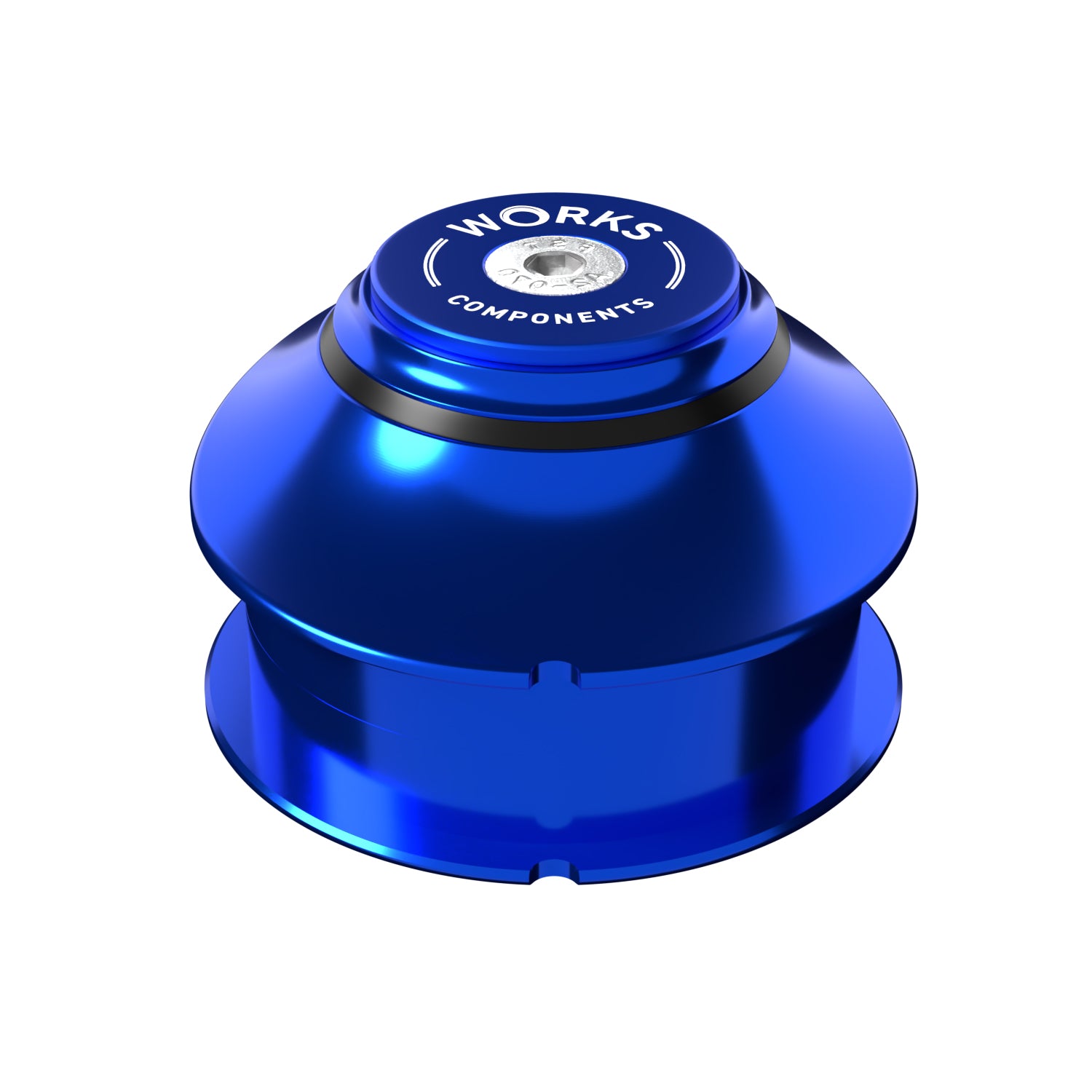

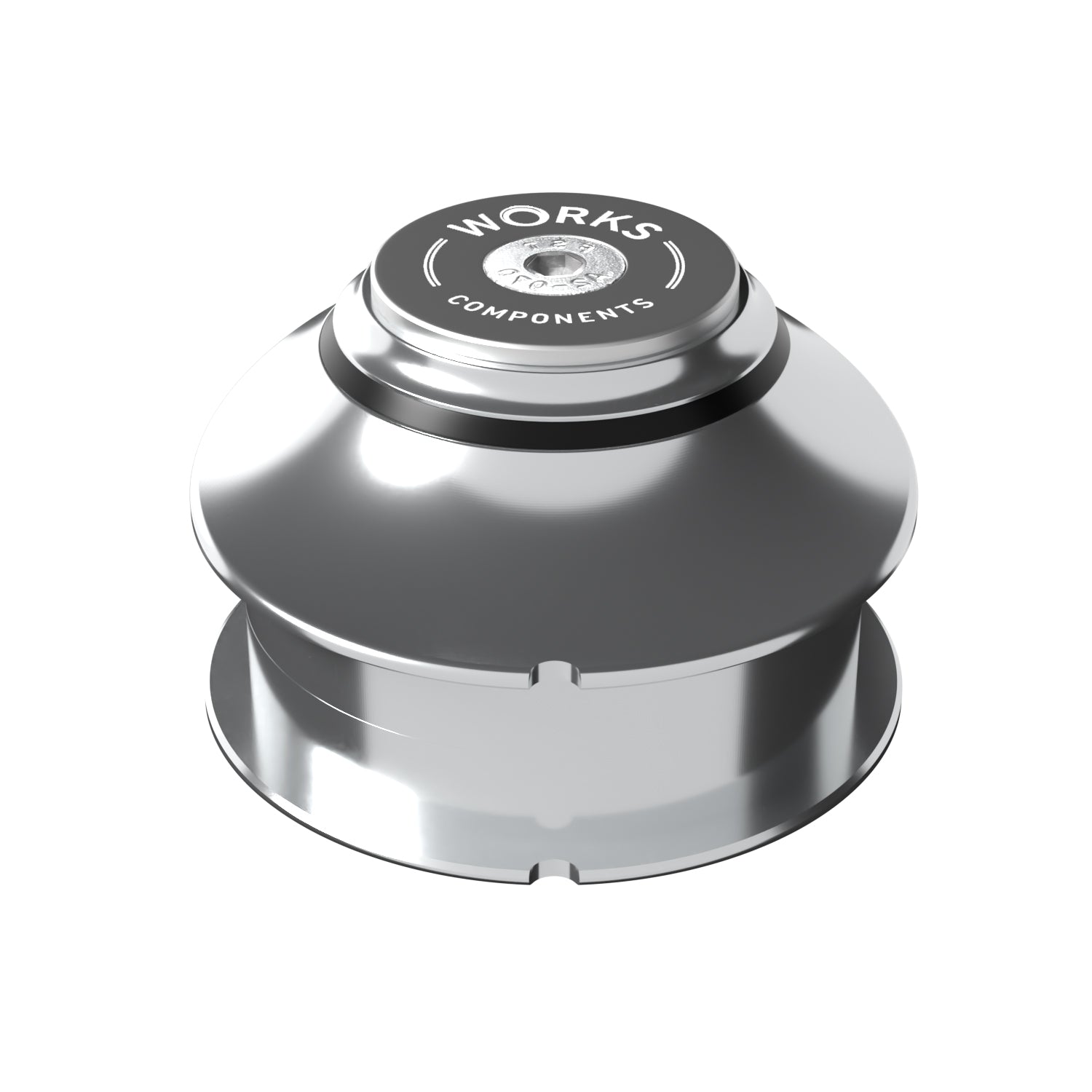

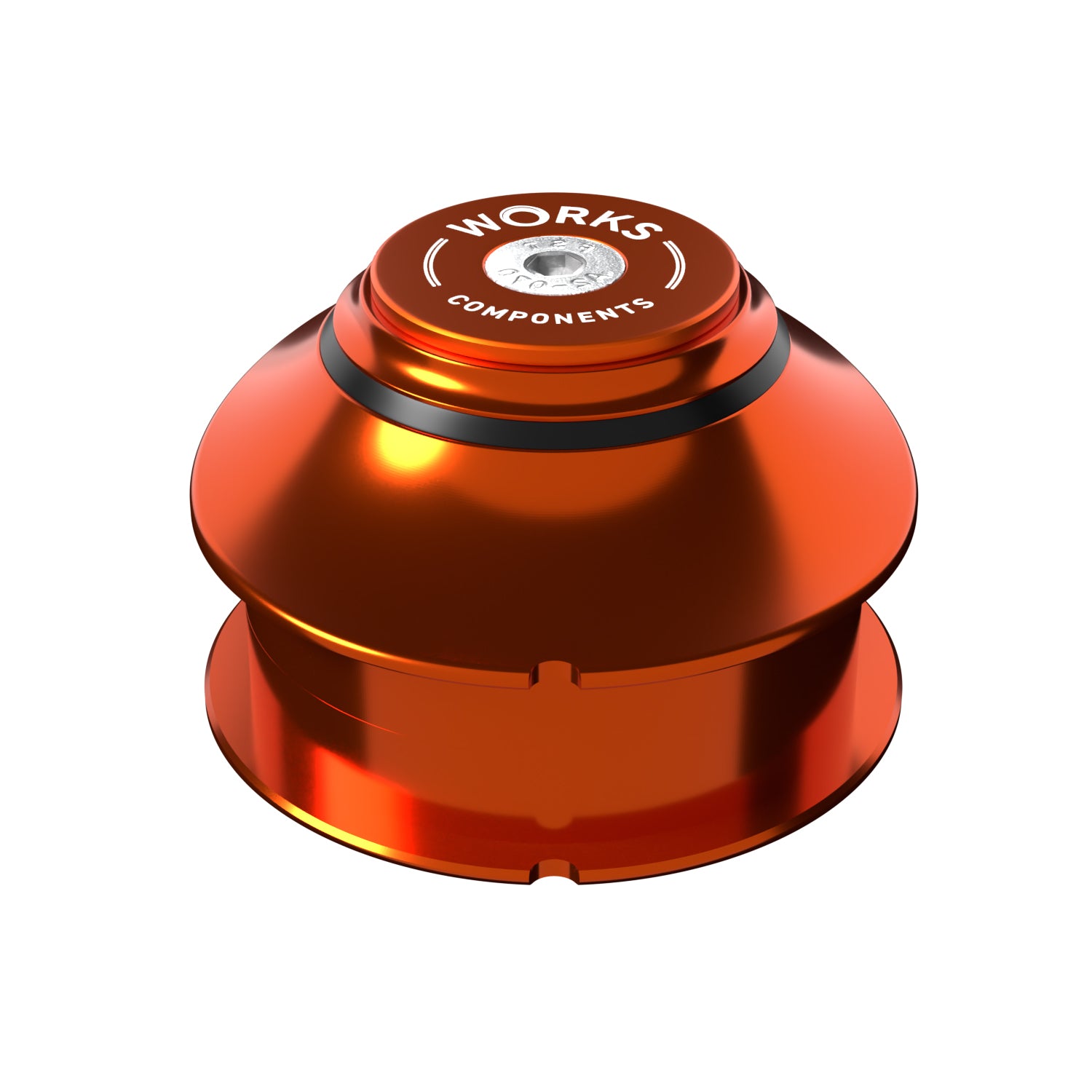

Reach Adjust EC56-EC56

Change your bikes geometry to suit you - with our World Cup proven reach adjust headsets you can alter stock geometry, changing the way your bike rides and feels to better match your personal riding style.

This headset will allow you to alter your top-tube length by +/- 10mm.

This Reach Adjust EC56 EC56 fits headtube internal diameter:

Upper - 56mm
Lower - 56mm

Manufactured in the UK

All of our Angle and Reach Adjust Headsets and Chainrings are CNC machined by us in-house in the UK and supplied globally. We anodise locally from 6082 T6 aluminium.

We pride ourselves on the quality of everything we make to meet the highest of World Cup standards.

Used By The Best

Our Reach Adjust headsets are used by the best riders in the world.

Lou Ferguson goes through her 2024 Hardline Tasmania setup.

Show me more

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
Glen Newland
Achieve Perfect Fit!

Built up a new Zerode G3 in Medium mid last year and have been struggling to to gel harmoniously with the bike. It has felt good but still with limitations on speed and control spending a lot of time paying with bar height and stem length and questioning if I had bought the right size frame. Being 177cm I am right in the middle of M & L so could size either way. Got this 10mm reach headset and a drop crown and I have created a bike that is exactly a half size longer and it is amazing! Not a solution I had thought of previously but definitely one I will keep in consideration on future builds!

D
Daniel Reisenbichler
Perfect quality

Had not yet a test ride, but the production quality is top notch. Installation flawless. Only hard pill to swallow is the additional import costs (non EU)

Add a Custom Topcap

If bought with any of our angle or reach adjust headsets you can get a custom topcap discounted to 50% at checkout.

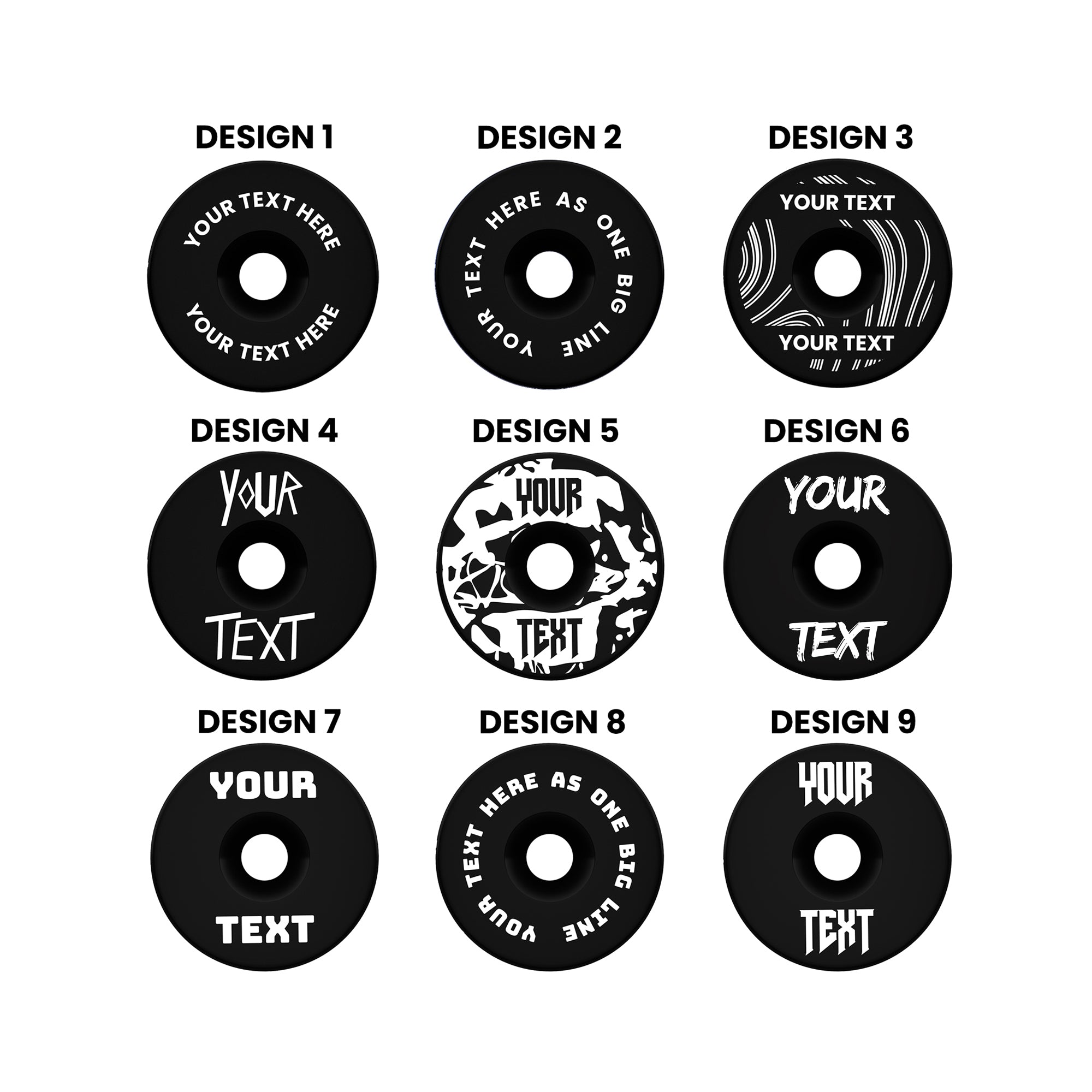

A headset top-cap in shiny anodised black with multiple different written designs.

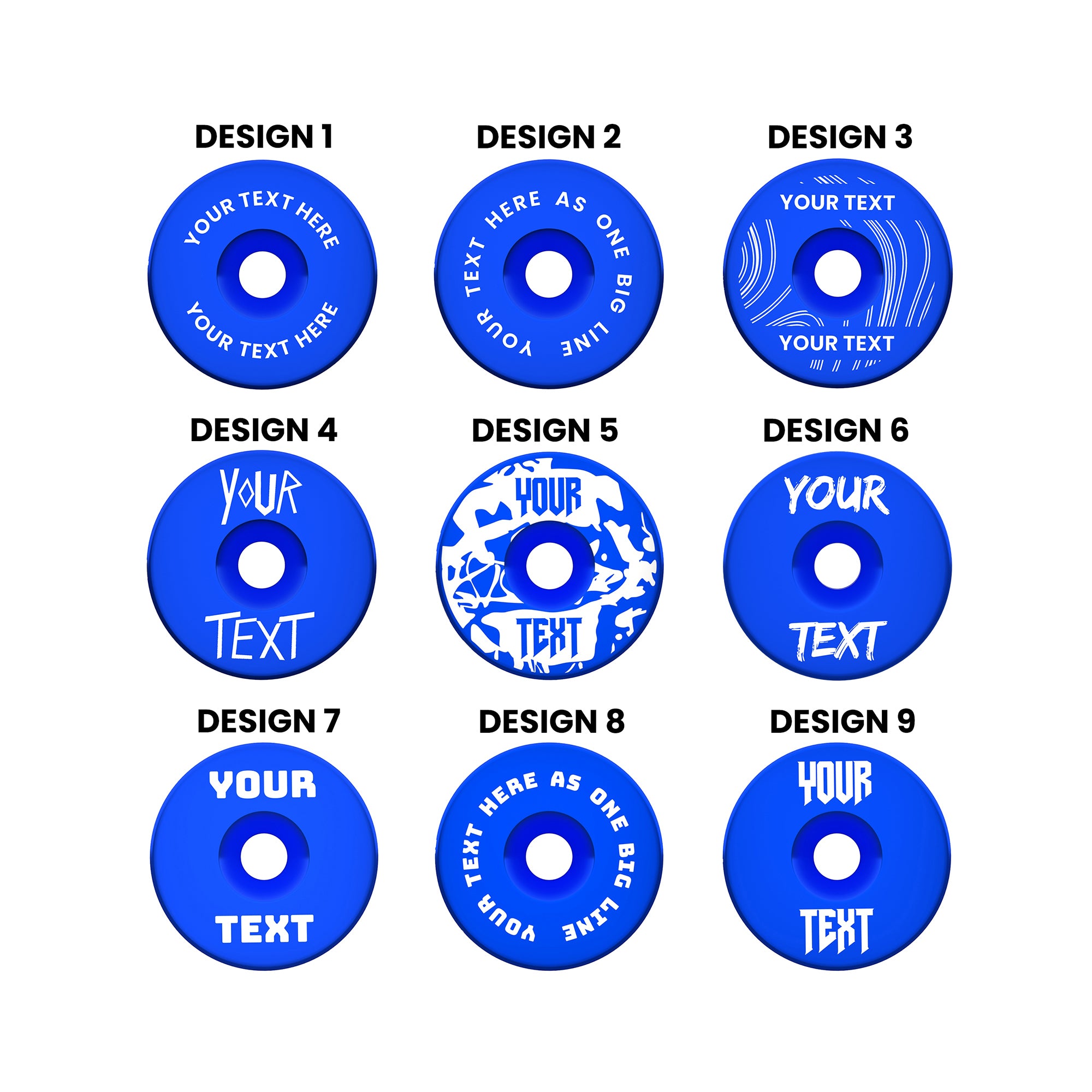

A headset top-cap in shiny anodised blue with multiple different written designs

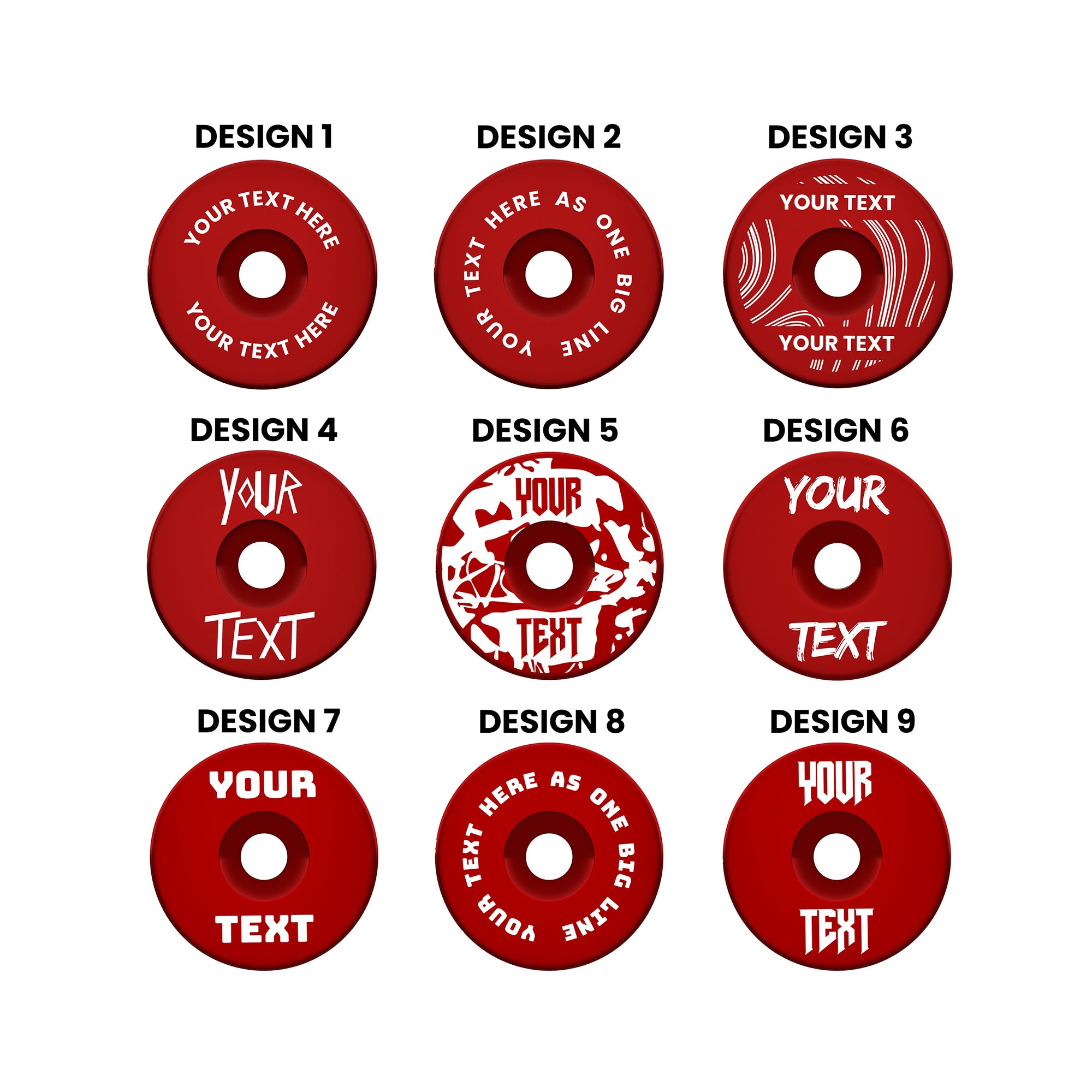

A headset top-cap in shiny anodised red with multiple different written designs

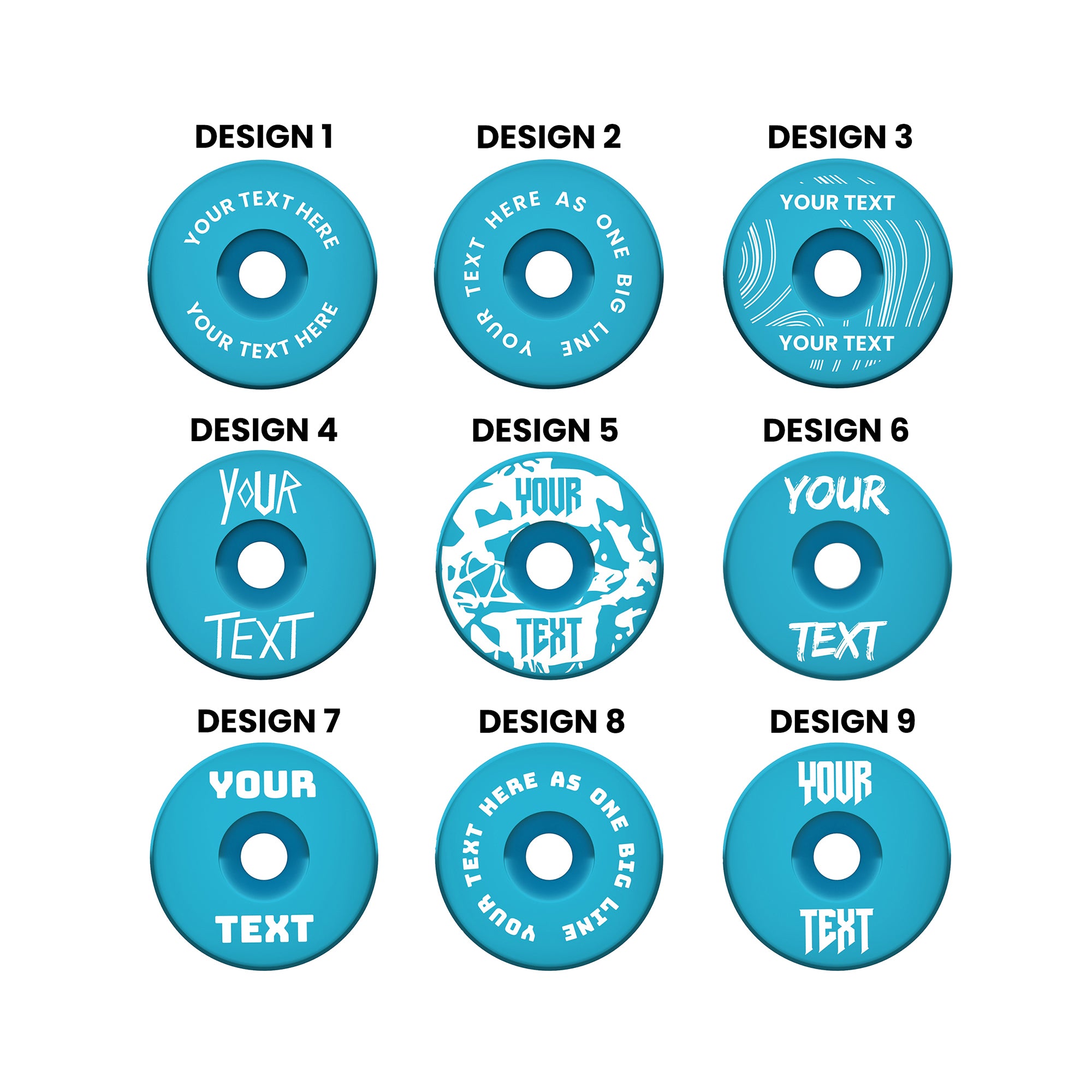

A headset top-cap in shiny anodised turquoise with multiple different written designs

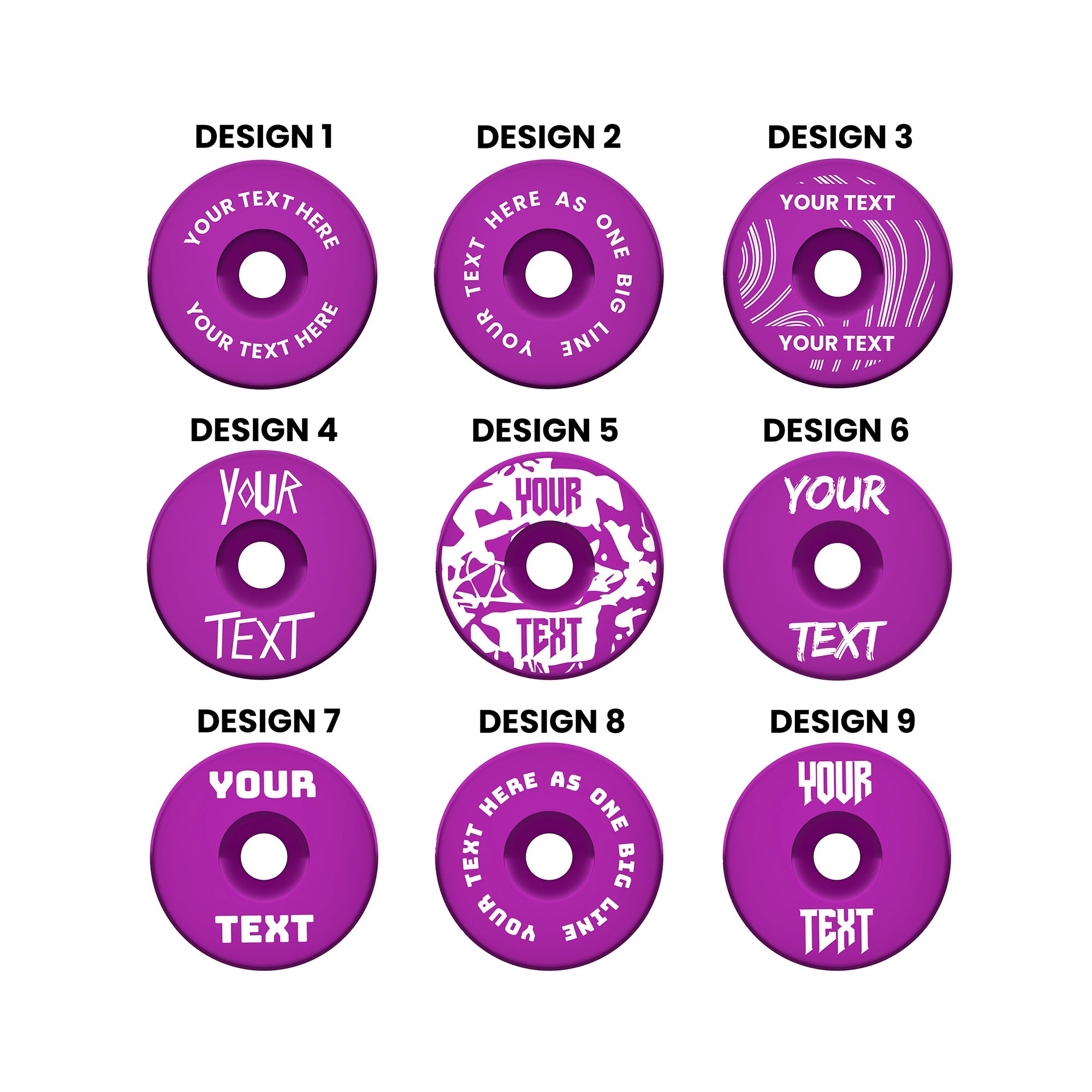

A headset top-cap in shiny anodised purple with multiple different written designs

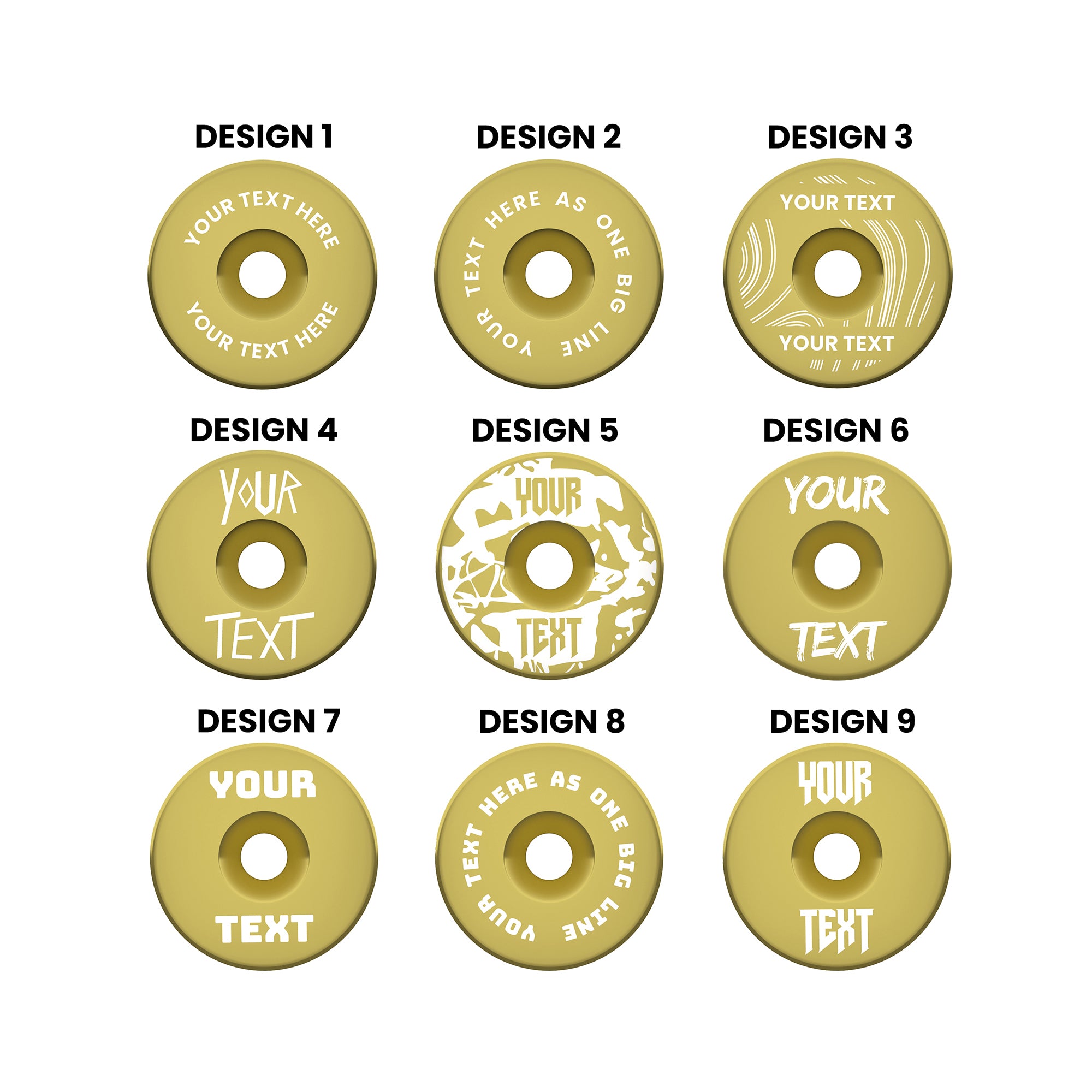

A headset top-cap in shiny anodised gold with multiple different written designs

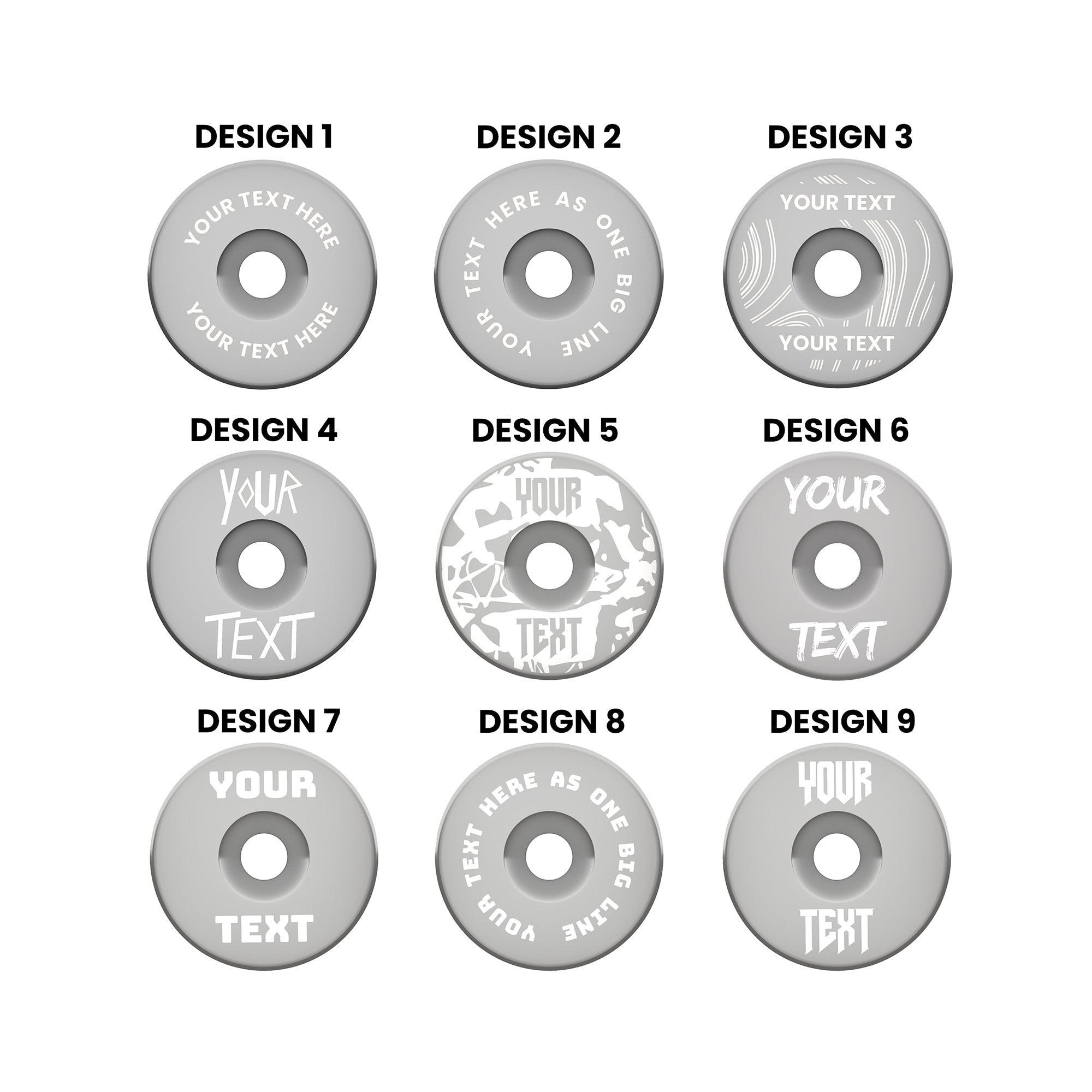

A headset top-cap in shiny anodised silver with multiple different written designs

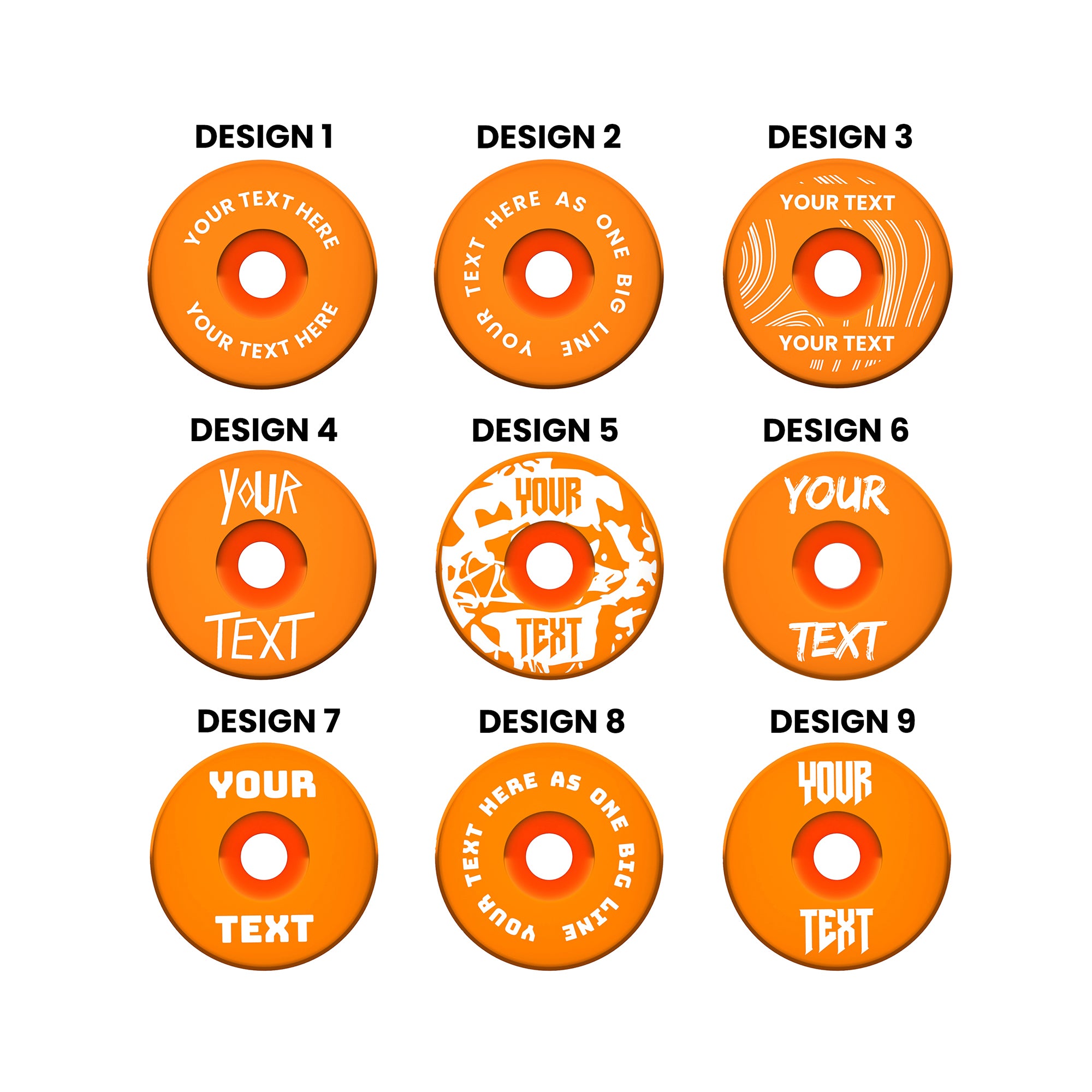

A headset top-cap in shiny anodised orange with multiple different written designs

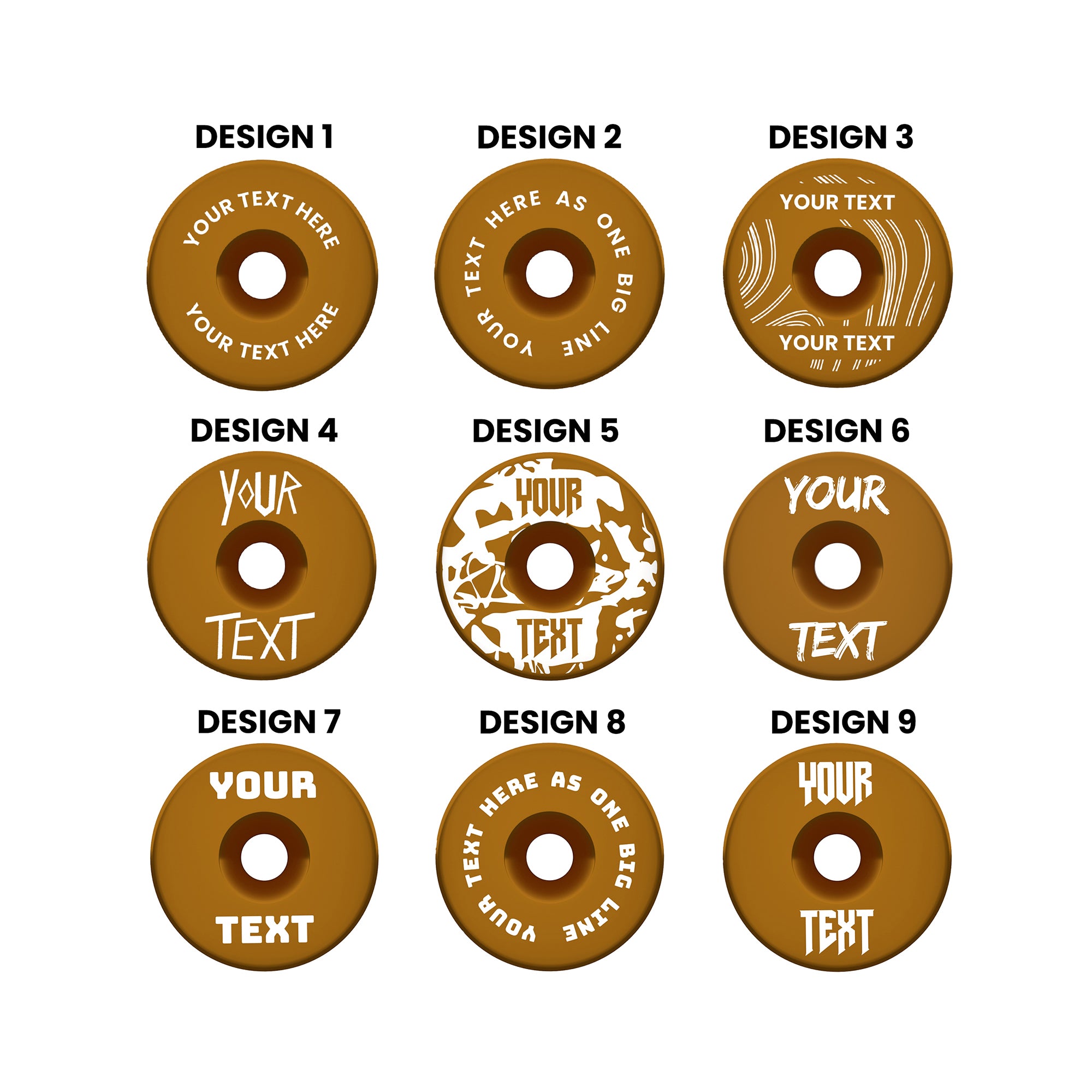

A headset top-cap in shiny anodised bronze with multiple different written designs

Custom Topcap

£13.99

11 reviews
Color: Black
Description

Customisable Top-Cap, laser etched to order.

Add your own text to 9 different designs and multiple colour options.

Design 1,2 and 3 use the "Poppins" font, Design 4 uses the "Slaytanic" font. Design 5 uses "AmazDoo", Design 6 uses the "Poppins" font. Designs 7 and 8 use "Bungee" and Design 9 uses "AmazDoo".

Made from 6082 Aluminium, Anodised in the UK - complete with stainless steel bolt and star-nut.

Available in: Black, Blue, Red, Purple, Orange, Gold, Silver and Turquoise and Bronze.
