Reach Adjust EC49-EC56 - To Suit Tapered Steerer - 5mm
Couldn't load pickup availability
Specifications
This headset will allow you to alter your top-tube length by +/- 5mm.
Fits headtube internal diameter: Upper - 49.61mm: EC49
Fits headtube internal diameter: Lower - 56mm: EC56
Upper cup insertion depth: 13.5mm
Lower cup insertion depth: 11.5mm
Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 15mm
Lower cup Stack height: 14mm
Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing
To suit tapered forks.

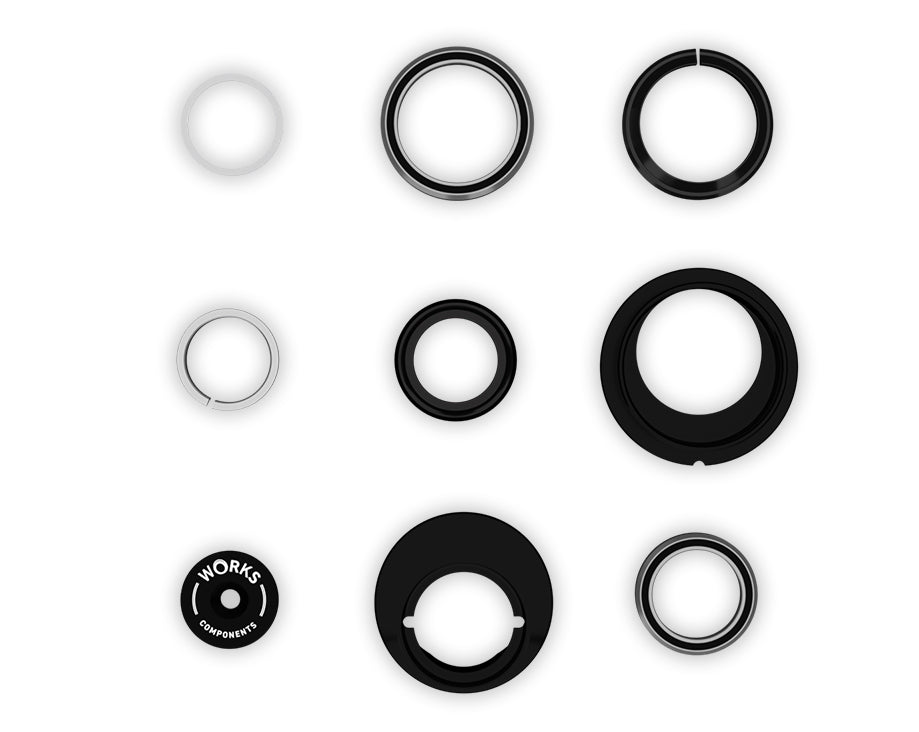

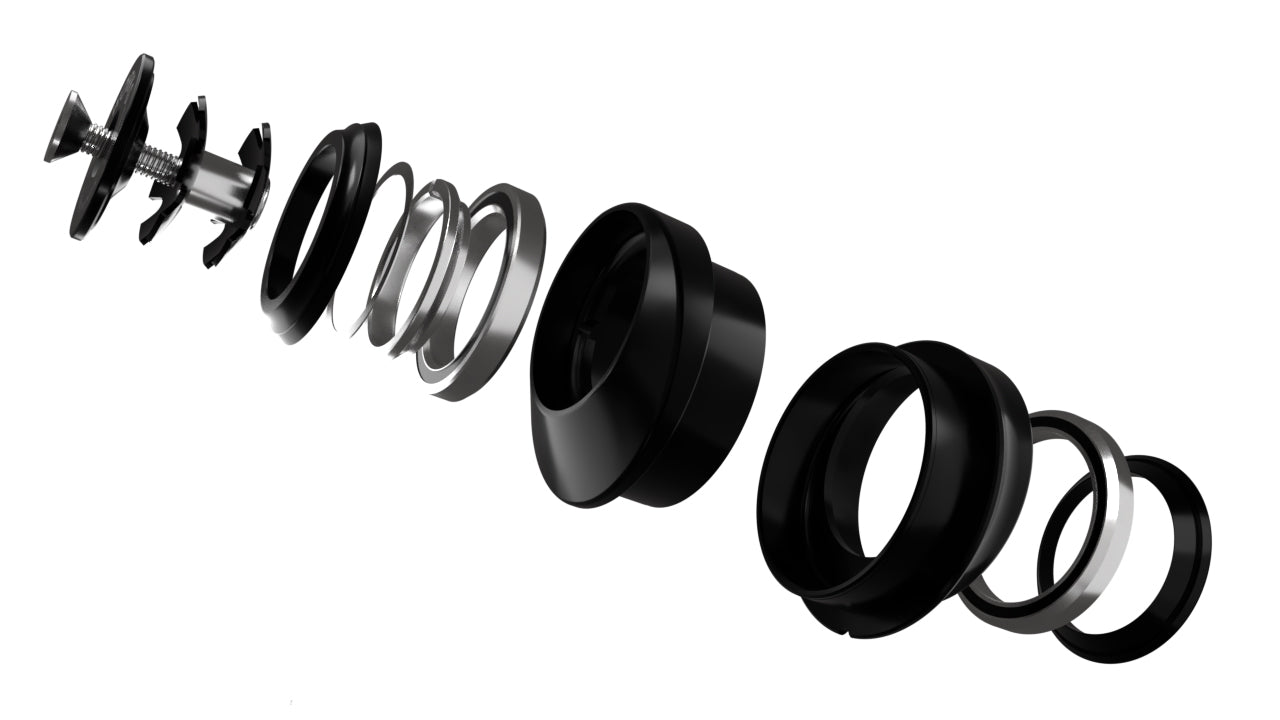

What's in the Box
2x Headcups
2x Bearings
1x Crown Race
1x Upper Bearing Cover
1x Topcap including Star-Nut
1x Compression Ring and Spacer
Reach Adjust EC49-EC56
Change your bikes geometry to suit you - with our World Cup proven angle headsets you can alter stock geometry, changing the way your bike rides and feels to better match your personal riding style.
This Reach EC49 EC56 headset allows you to slacken your bikes head angle to gain more stability or steepen your bikes head angle if you are looking to sharpen your bikes steering.
This headset will allow you to alter your top-tube length by +/- 5mm.
This Reach Adjust EC49 EC56 fits headtube internal diameter:
Upper - 49mm
Lower - 56mm
Manufactured in the UK
All of our Angle and Reach Adjust Headsets and Chainrings are CNC machined by us in-house in the UK and supplied globally. We anodised locally in black from 6082 T6 aluminium.
We pride ourselves on the quality of everything we make to meet the highest of World Cup standards.
Used By The Best
Our Reach Adjust headsets are used by the best riders in the world.
Lou Ferguson goes through her 2024 Hardline Tasmania setup.
Add a Custom Topcap
If bought with any of our angle or reach adjust headsets you can get a custom topcap discounted to 50% at checkout.
Description
When bought with any headset (Angle or Reach) it is discounted by 50% at checkout.
- Customisable Top-Cap, laser etched to order.
- Add your own text to 9 different designs and multiple colour options.
- Design 1,2 and 3 use the "Poppins" font, Design 4 uses the "Slaytanic" font. Design 5 uses "AmazDoo", Design 6 uses the "Edo SZ" font. Designs 7 and 8 use "Bungee" and Design 9 uses "AmazDoo".
- Made from 6082 Aluminium, anodised in the UK - complete with stainless steel bolt and star-nut.
- Available in: Black, Blue, Red, Purple, Orange, Gold, Silver, Bronze and Turquoise.
